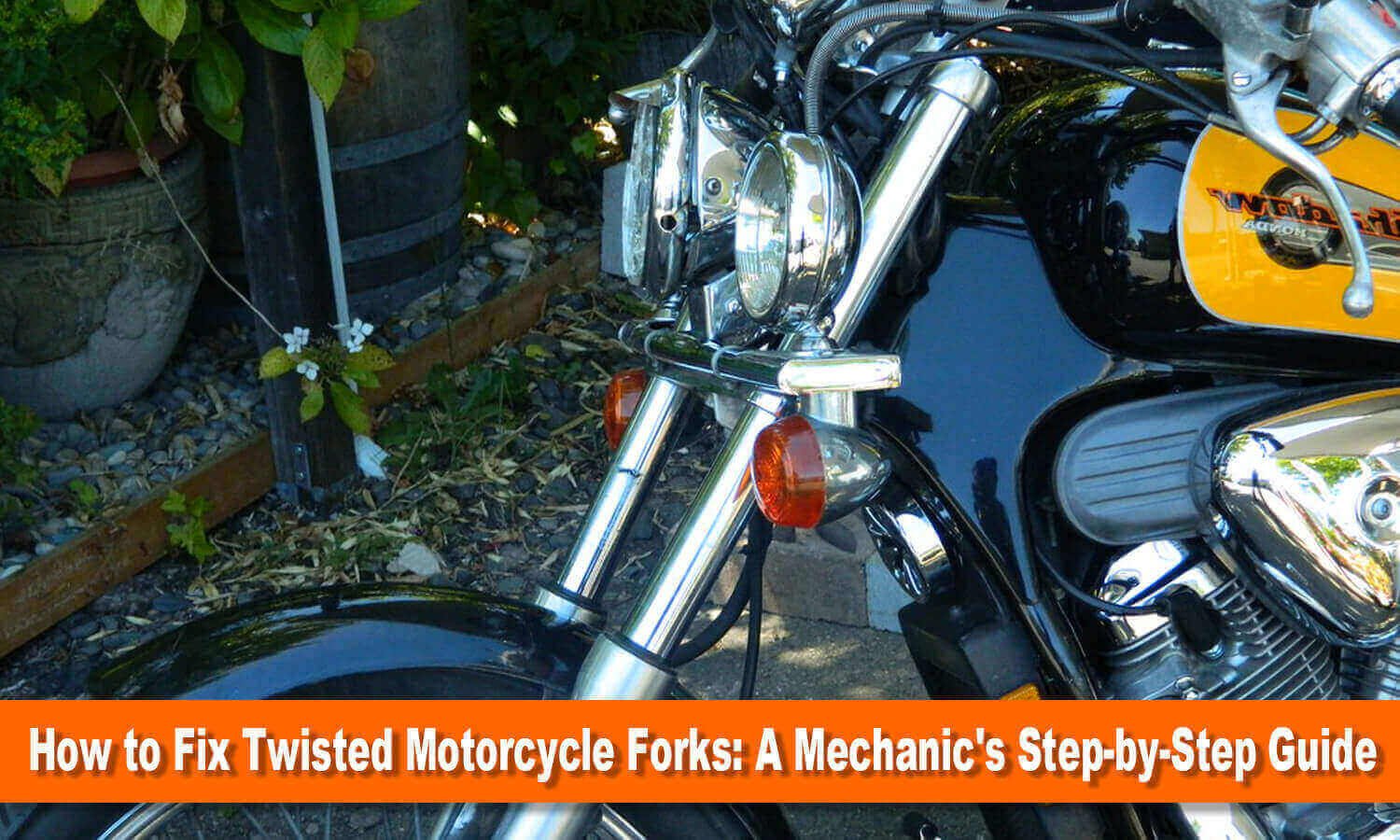

How to Fix Twisted Motorcycle Forks: A Mechanic's Step-by-Step Guide

Motorcycle forks that get bent often happen because of wrecks, slips, or not looking after your bike properly. These crooked forks can mess with how the bike steers, make tires wear out badly, and sometimes cause crashes.

This guide gives you the full scoop—okayed by mechanics—on how to spot and sort out bent forks, making sure your ride is smooth and you stay out of trouble.

Understanding Twisted Forks

Motorcycle forks stay put because of the top and bottom triple clamps—they're a piece of the "triple tree." If a motorcycle hits something hard, the clamps might twist out of place. When that happens, one fork leg might end up a bit in front of its buddy. This throws off the way the bike steers and how well the shocks work.

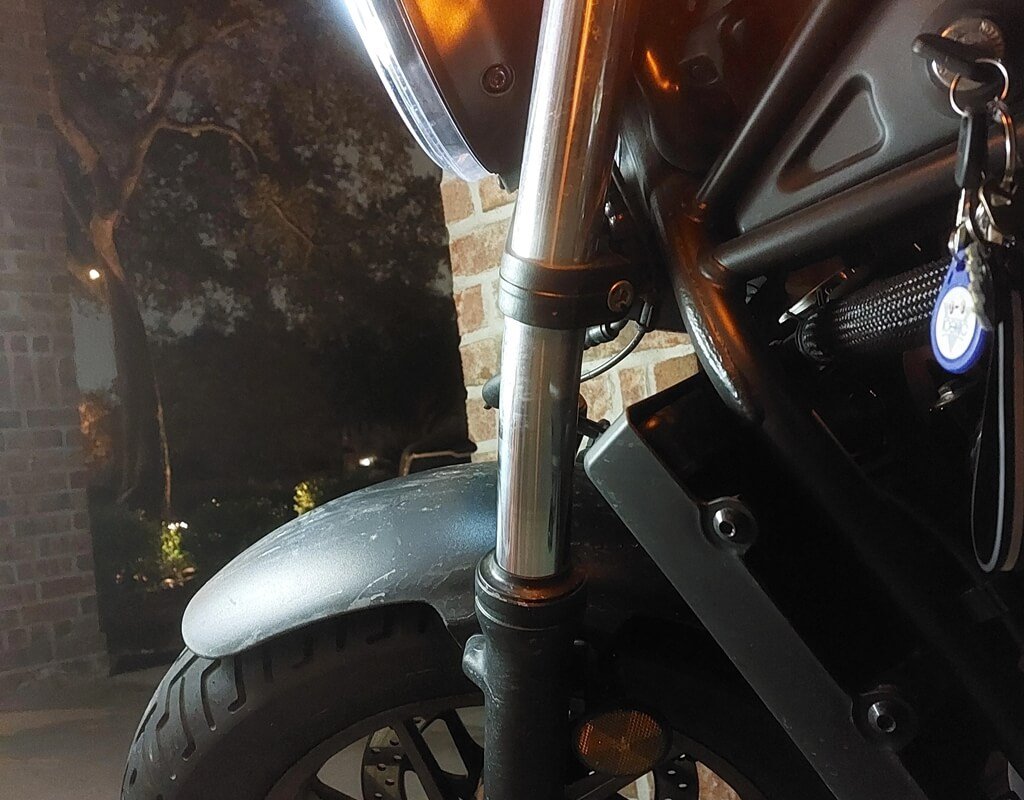

twisted forks

Typical Reasons

1. Taking a spill or tumbling over if it's upfront or on the side.
2. Not getting those triple clamp bolts or axle pinch bolts tight enough.
3. Slamming into big holes or stuff on the road when you're zooming.

Diagnosing Twisted Forks

Before starting repairs, confirm the forks are twisted:

1. Visual Check: Look for a misaligned front fender or wheel. Sit on the bike and check if the handlebars, fender, and wheel form a straight line.
2. Ride Test: If the bike pulls to one side or feels stiff during suspension movement, the forks may be twisted.
3. Oil Leaks: Check for oil on the fork legs, which could indicate bent stanchions or damaged seals.

Essentials for the Job

• Own a torque wrench—it's key for exact tightening.
• Got hex keys or a socket set? Size them up to fit your bike's bolts.
• Don't forget a rear or center stand.
• A soft mallet might come in handy, but it's not a must.
• Grab some clean cloths and fork oil to keep things slick.

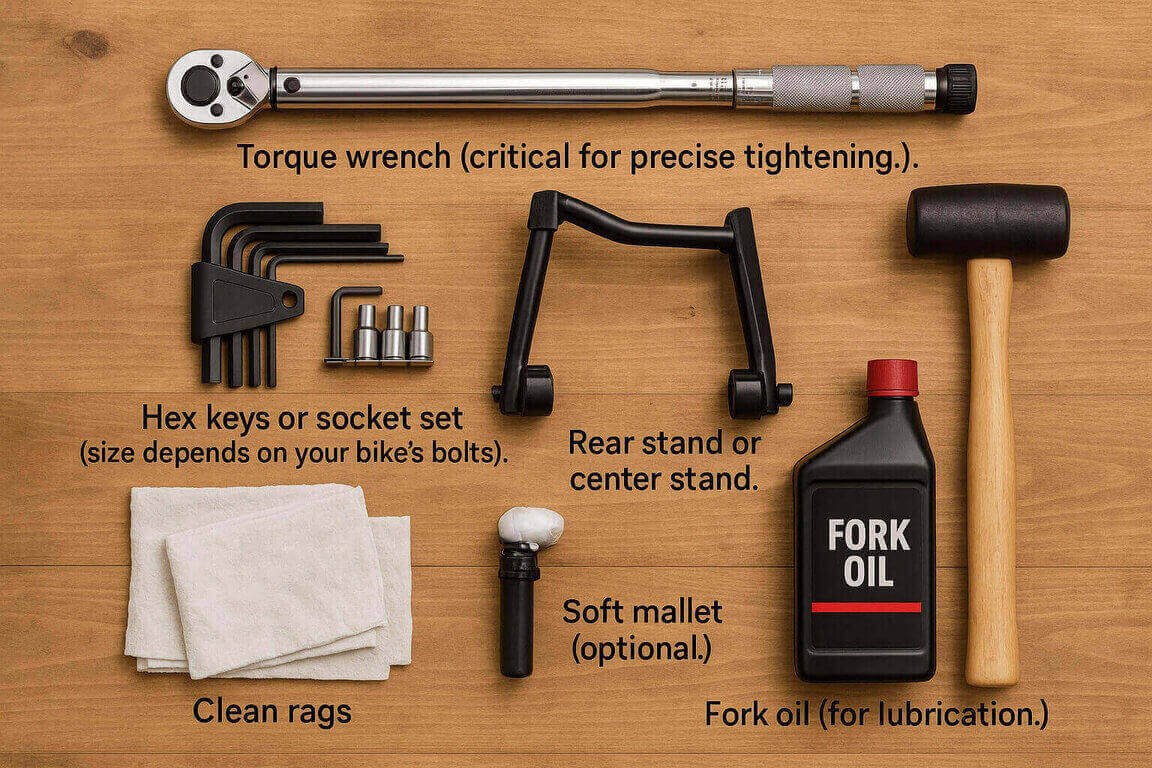

Tools to fix motorcycle forks

Step-by-Step Fix for Twisted Forks

1. Secure the Motorcycle

Place the bike on a rear stand or center stand to unload the front suspension. If unavailable, have a helper hold the bike upright111.

2. Loosen Key Bolts

Loosen (but do not remove) the following bolts in this order:

• Top triple clamp bolts – that's if your ride's got 'em.
• Bottom triple clamp bolts – both sides
• The bolts pinching the front axle and that big ol' axle nut.

Pro Tip: Loosening these bolts allows the forks to self-align. Avoid removing bolts entirely—this prevents parts from shifting unpredictably.

3. Realign the Forks

Method 1 (Standing Compression):

• With the bike upright, grip the handlebars firmly.
• Push down on the front end repeatedly, using your body weight to compress the forks. The suspension’s natural movement will guide the forks back into alignment.

Method 2 (Spin-and-Brake Technique):

• Lift the front wheel off the ground.
• Spin the wheel rapidly and abruptly apply the front brake. This centers the axle and caliper, aligning the forks.

4. Check Alignment

• Ensure the fender, wheel, and handlebars are straight.
• Verify equal fork tube protrusion above the upper triple clamp (measure with a ruler).

5. Tighten Bolts to Spec

Re-tighten bolts in this order, using a torque wrench:

1. Upper triple clamp bolts (if loosened).
2. Lower triple clamp bolts.
3. Front axle nut and pinch bolts.
4. Fender bolts and caliper mounts.

Torque Values:

• Triple clamp bolts: 15–22 Nm (check your bike’s manual).
• Axle nut: 50–80 Nm (varies by model).

6. Test Ride

• Take a slow test ride to check steering responsiveness.
• Listen for unusual noises and monitor handling stability.

Key Takeaways

• Always use a torque wrench for suspension components.
• Test alignment visually and with a short ride after adjustments.
• Replace, don’t repair, severely damaged forks.

When to Seek Professional Help

If the above steps don’t resolve the issue, your forks may be bent, not just twisted. Bent stanchions require:

• Hydraulic Press Straightening: A specialized tool to reshape the inner tubes. However, this weakens the metal over time.
• Replacement: Severely bent forks should be replaced. Used or aftermarket forks cost 150–600, depending on the model.

Preventing Future Misalignment

• Regular Inspections: Check the triple clamp and axle bolts before rides.
• Proper Torque: Always use a torque wrench—overtightening strains components.
• Fork Maintenance: Replace seals every 2–3 years and change fork oil annually.

FAQ: Twisted Motorcycle Forks

Q: Can I fix twisted forks without a torque wrench?
A: No. Improper tightening risks recurring misalignment or damage.

Q: How much does a professional fork overhaul cost?
A: Between €190–€300, including seal replacement and oil changes.

Q: Are bent forks repairable?
A: Mild bends can be pressed straight, but replacement is safer for severe damage.

Conclusion

Straightening out motorcycle forks isn't too tough if you've got the proper gear and a bit of patience on your side. Keeping up with the upkeep and being mindful while you ride can help avoid the chance of things getting wonky. But hey, if you're dealing with something hairy like crooked stanchions or leaks that just won't quit, better call in an expert to make sure everything's safe and up to snuff.
